Military Flood Barriers Mesh Gabion Box Recoverable Units 3 Years Warranty

Name: Military Flood Barriers Mesh Gabion Box Recoverable Units 3 Years Warranty
Brand: SHUXIN
Price: 1 USD

China Military Flood Barriers Mesh Gabion Box Recoverable Units 3 Years Warranty wholesale

Brand Name : SHUXIN

Model Number : gabion

Certification : ISO CE SGS COC

Place of Origin : CHINA

MOQ : 10 unit

Price : Negotiated

Payment Terms : Western Union, MoneyGram, T/T, L/C

Delivery Time : 15 working days

Packaging Details : in wooden pallet and plastic film outside or as your requirement

Supply Ability : 100 units per week

Material : Q195 Low Carbon steel Wire

Mesh Wire : 5.0 mm

Spring Wire : 4.0 mm

Surface Treatment : Heavy Hot Dipped Galvanized

Geotextile : 300gsm Sand Color,Green Color

life duration : ≥ 25 years

warranty : ≥ 3 years

Application : military or flood protection

Contact Now

Flood Barrier Military Defensive Barriers Recoverable Mesh Gbaion Box

1. Introduction of defensive barrier :
The defense barrier is a modern gabion primarily used for flood control and military fortifications . It is made of a collapsible wire mesh container and heavy duty fabric liner, and used as a temporary to semi-permanent levee or blast wall against explosions or small-arms . It has seen considerable use in many countries .

2. Material :
It is made of galvanized welded mesh,spring with other fittings,can be filled with sand,earth,cement,stone,can be used in separate cell or some cells joint together.

3. Finish:
hot dipped galvanized, galfan coated

4. Specification :
1) wire diameter: 3mm-5mm
2) hole: 2''x2'',3''x3'',4''x4''
3) hesco size: 0.61x0.61m,1x1m,2.13x2.21m,other size can be produced as requested.
4) geotextile: in non-woven geotextile,color can be white,beige-sand color.
Defensive Barrier Specification

Model	Height	Width	Length	Internal Cells
SX-1(Mil 1)	54”(1.37m)	42”(1.06m)	32’9”(10m)	5+4=9 cells
SX-2(Mil 2)	24”(0.61m)	24”(0.61m)	4’(1.22m)	2 cells
SX-3(Mil 3)	39”(1.0m)	39”(1.0m)	32’9”(10m)	5+5=10 cells
SX-4(Mil 4)	39”(1.0m)	60”(1.52m)	32’9”(10m)	5+5=10 cells
SX-5(Mil 5)	24”(0.61m)	24”(0.61m)	10’(3.05m)	5 cells
SX-6(Mil 6)	66”(1.68m)	24”(0.61m)	10’(3.05m)	5 cells
SX-7(Mil 7)	87”(2.21m)	84”(2.13m)	91’(27.74m)	5+4+4=13 cells
SX-8(Mil 8)	54”(1.37m)	48”(1.22m)	32’9”(10m)	5+4=9 cells
SX-9(Mil 9)	39”(1.0m)	30”(0.76m)	30’(9.14m)	6+6=12 cells
SX-10(Mil 10)	87”(2.21m)	60”(1.52m)	100’(30.5m)	5+5+5+5=20 cells
SX-11(Mil 11)	48”(1.22m)	12”(0.30m)	4’(1.22m)	2 cells
SX-12(Mil 12)	84”(2.13m)	42”(1.06m)	108’(33m)	5+5+5+5+5+5=30 cells
SX-19(Mil 19)	108”(2.74m)	42”(1.06m)	10’5”(3.18m)	6 cells

Defensive Barrier Features :

1, Units can be both lined or unlined in other word it can be used together to any length, and can be stacked for additional height.
2, The spiral hinged corners allows flat packing for ease of transportation
3, The welded mesh frame is of highly durable construction
4, The Galfan coated welded mesh frame is ideal for containing large amounts of the geavy fill material that gives the system its strength.
5, The non-woven geotextile liner allowing a wide range of fill material

Defensive Barrier Application :
♦ Perimeter security and defense walls
♦ Equipment revetments
♦ Personnel and material bunkers
♦ Observation points
♦ Defensive firing positions
♦ Guard posts
♦ Protection engineering of seaside area
♦ Border crossing checkpoints
♦ Protecting existing structures
♦ Flood control retaining wall

FAQ :

Q: Are you trading company or manufacturer ?
A: We are factory.
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: What is your terms of payment ?
A: Payment<=1000 USD, 100% in advance. Payment>=1000 USD, 30% T/T in advance ,balance before shippment.
If you have another question, pls feel free to contact us .
Military Flood Barriers Mesh Gabion Box Recoverable Units 3 Years Warranty

Product Tags:

barrier defence

define barrier

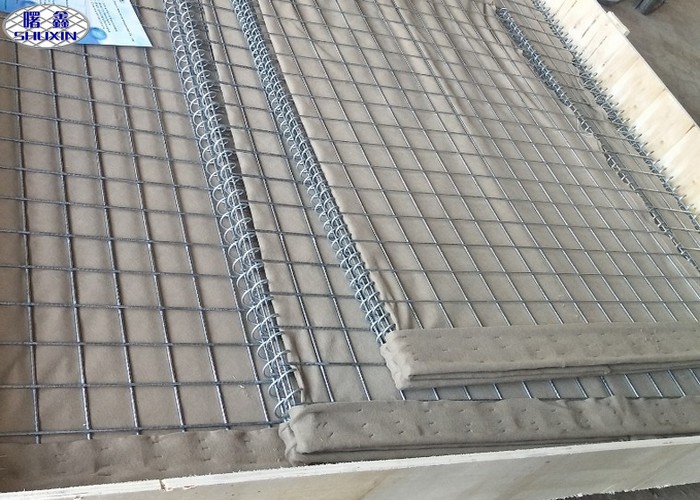

Military Flood Barriers Mesh Gabion Box Recoverable Units 3 Years Warranty Images
