Sand Wall Mesh Gbaion Box Anti Blast Defensive Barrier Blast Mitigation
1. Introduction of defensive barrier :
defensive Barrier units can be used for perimeter protection, border control and temporary accommodation bunkers.

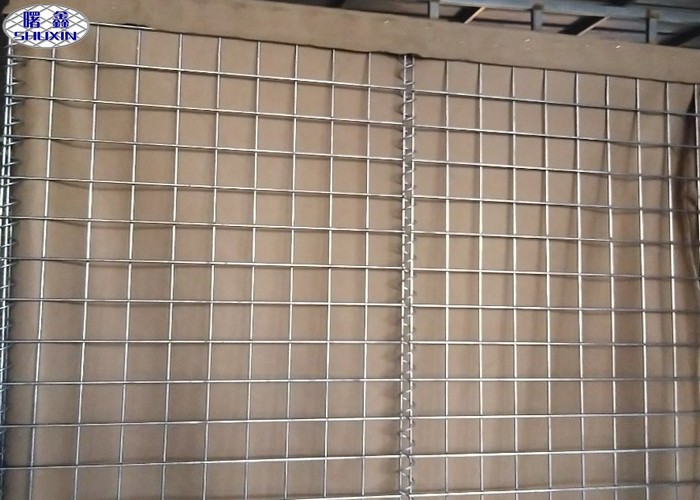

The Concertainer unit is a multi-cellular barrier system manufactured from welded Zinc-Aluminium coated steel mesh or galvanized steel wire mesh and lined with heavy-duty non-woven polypropylene geotextile.
The unique design, strength and versatility enable corners to be constructed easily, shaping the defensive barrier to the surrounding landscape and when joined and filled, the system can be used to create barriers of exceptional strength and structural integrity.
2. Material :
It is made of galvanized welded mesh,spring with other fittings,can be filled with sand,earth,cement,stone,can be used in separate cell or some cells joint together.
3. Finish:
hot dipped galvanized, galfan coated
4. Specification :
1) wire diameter: 3mm-5mm
2) hole: 2''x2'',3''x3'',4''x4''
3) hesco size: 0.61x0.61m,1x1m,2.13x2.21m,other size can be produced as requested.
4) geotextile: in non-woven geotextile,color can be white,beige-sand color.
Defensive Barrier Specification
| Model | Height | Width | Length | Internal Cells |
| SX-1 | 54”(1.37m) | 42”(1.06m) | 32’9”(10m) | 5+4=9 cells |
| SX-2 | 24”(0.61m) | 24”(0.61m) | 4’(1.22m) | 2 cells |
| SX-3 | 39”(1.0m) | 39”(1.0m) | 32’9”(10m) | 5+5=10 cells |
| SX-4 | 39”(1.0m) | 60”(1.52m) | 32’9”(10m) | 5+5=10 cells |
| SX-5 | 24”(0.61m) | 24”(0.61m) | 10’(3.05m) | 5 cells |
| SX-6 | 66”(1.68m) | 24”(0.61m) | 10’(3.05m) | 5 cells |
| SX-7 | 87”(2.21m) | 84”(2.13m) | 91’(27.74m) | 5+4+4=13 cells |
| SX-8 | 54”(1.37m) | 48”(1.22m) | 32’9”(10m) | 5+4=9 cells |
| SX-9 | 39”(1.0m) | 30”(0.76m) | 30’(9.14m) | 6+6=12 cells |
| SX-10 | 87”(2.21m) | 60”(1.52m) | 100’(30.5m) | 5+5+5+5=20 cells |
| SX-11 | 48”(1.22m) | 12”(0.30m) | 4’(1.22m) | 2 cells |
| SX-12 | 84”(2.13m) | 42”(1.06m) | 108’(33m) | 5+5+5+5+5+5=30 cells |
| SX-19 | 108”(2.74m) | 42”(1.06m) | 10’5”(3.18m) | 6 cells |
Defensive Barrier Features :
1, Units can be both lined or unlined in other word it can be used together to any length, and can be stacked for additional height.
2, The spiral hinged corners allows flat packing for ease of transportation
3, The welded mesh frame is of highly durable construction
4, The Galfan coated welded mesh frame is ideal for containing large amounts of the geavy fill material that gives the system its strength.
5, The non-woven geotextile liner allowing a wide range of fill material
Defensive Barrier Application :
♦ Perimeter security and defense walls
♦ Equipment revetments
♦ Personnel and material bunkers
♦ Observation points
♦ Defensive firing positions
♦ Guard posts
♦ Protection engineering of seaside area
♦ Border crossing checkpoints
♦ Protecting existing structures
♦ Flood control retaining wall
FAQ :
Q: Are you trading company or manufacturer ?
A: We are factory.
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: What is your terms of payment ?
A: Payment<=1000 USD, 100% in advance. Payment>=1000 USD, 30% T/T in advance ,balance before shippment.
If you have another question, pls feel free to contact us .
