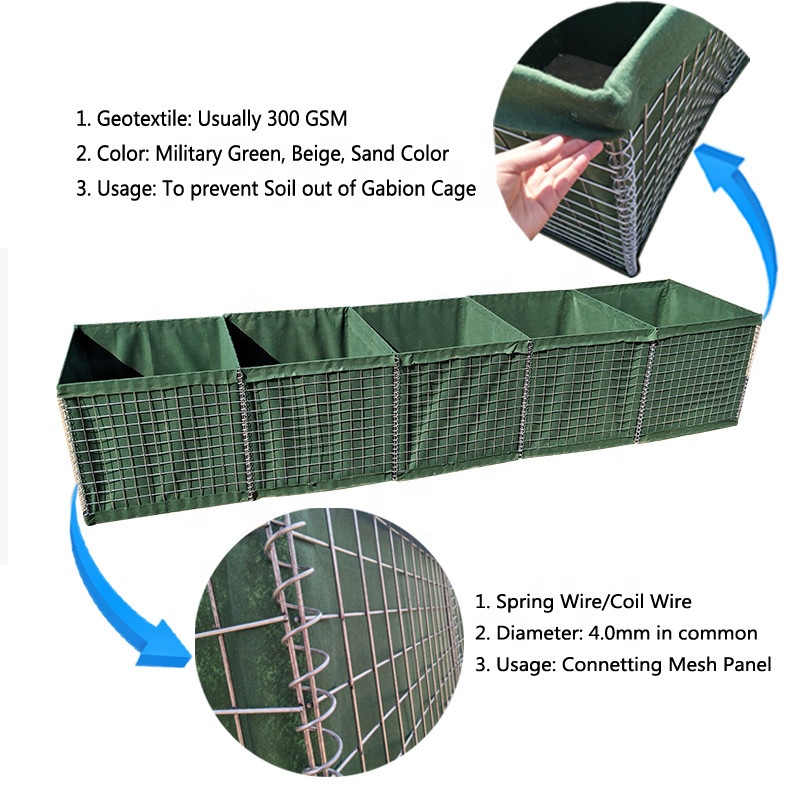

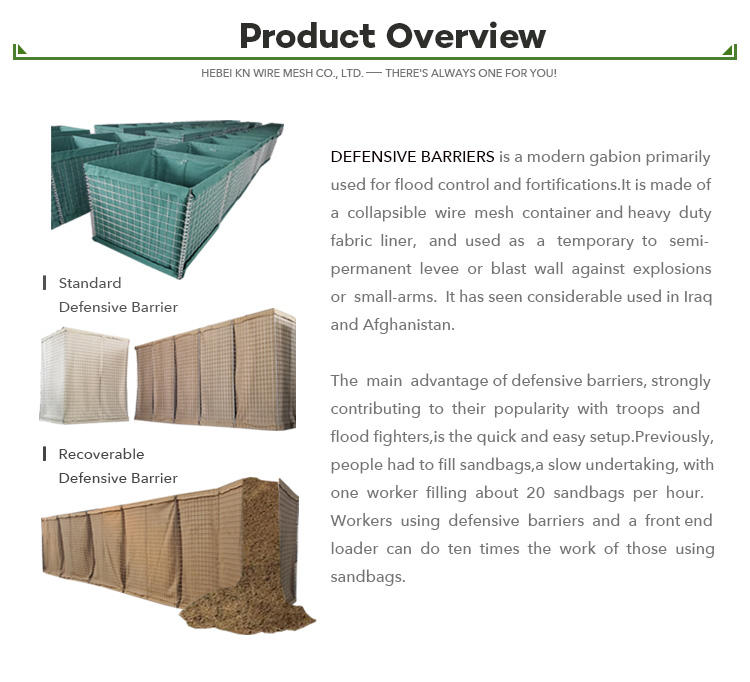

The KN Defensive Barrier unit is a multi-cellular barrier system manufactured from welded zinc-aluminum coated steel wire mesh and joined with verticalhelical-coil joints. The units are lined with a heavy-duty non-woven polypropylene geotextile.When joined and filled, the system can be used to create barriers of exceptional strength and structural integrity.At Hebei KN we provide confidence through the quality of design, developmentand manufacture of each product.
Specifcation And Model:
- Material: hot-dipped galvanized steel wire or zinc-aluminum alloy steel wire.
- Wire diameter: 4mm or 5mm.
- Mesh size: 50*50mm,75*75mm,76.2*76.2mm,50*100mm,100*100mm,ect.
- Geotextile: heavy duty non-woven polypropylene,weight can be 250 g/ m²
- Geotextile color: white,beige, Green and other customized colors.

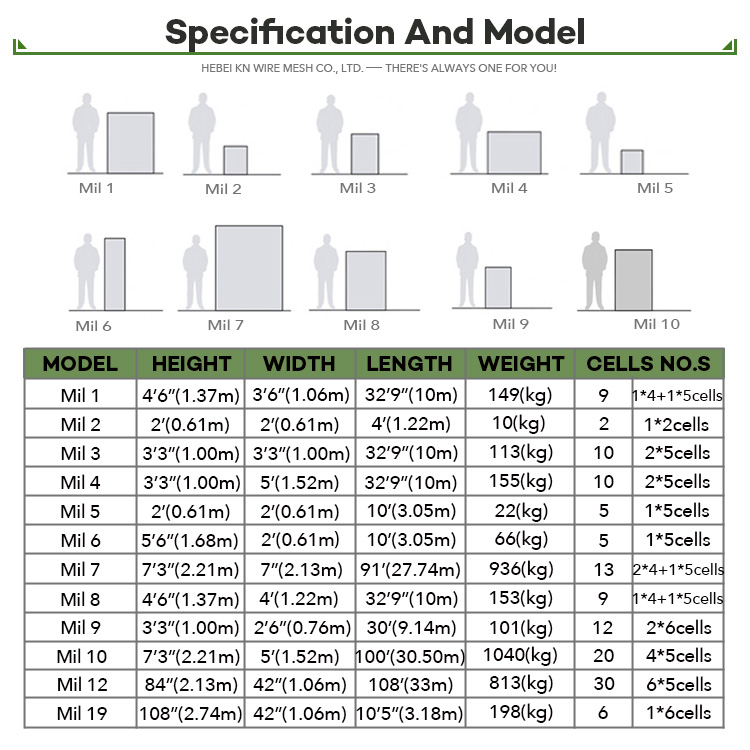

| Specifcation And Model |
| Model | Height | Width | Length |
| KN-1 | 54"(1.37M) | 42"(1.06M) | 32'9"(10M) |
| KN-2 | 24"(0.61M) | 24"(0.61M) | 4'(1.22M) |
| KN-3 | 39"(1.00M) | 39"(1.00M) | 32'9"(10M) |
| KN-4 | 39"(1.00M) | 60"(1.52M) | 32'9"(10M) |
| KN-5 | 24"(0.61M) | 24"(0.61M) | 10'(3.05M) |
| KN-6 | 66"(1.68M_ | 24"(0.61M) | 10'(3.05M) |
| KN-7 | 87"(2.21M) | 84"(2.13M) | 91'(27.74M) |
| KN-8 | 54"(1.37M) | 48"(1.22M) | 32'9"(10M) |
| KN-9 | 39"(1.00M) | 30"(0.76M) | 30'(9.14M) |
| KN-10 | 87"(2.21M) | 60"(1.52M) | 100'(32.50M) |
| KN-11 | 48"(1.22M) | 12"(0.30M) | 4'(1.22M) |
| KN-12 | 84"(2.13M) | 42"(1.06M) | 108'(33M) |
| KN-19 | 108"(2.74M) | 42"(1.06M) | 10'5"(3.18M) |
Package:
Hebei KN Defensive Barriers Packaging:
Defensive barrier packing on pallet then wrapped with plastic film outside .
Besides, customers' request are also available.
The Advantages for Barrier:
1. Collapsible
It is assembled by Panel and Spring Wire, When Loading and transportation, It is Foldable into one piece.
2. Anti-Corrosion
The Raw material is Hot Dipped Galvanized Wire, it can use 10 years even more longer, fit for outside protection.
3. Easy Installation
After getting it, Just put it in the right place and open it, Full filled the sand and earth is okay. Even 2-3 persons can finishit.
4. Quick Displacements
When you want to use it in another place,Just to move it, It can use many times
5. Easy to repair
If some part is destroyed, Just left it and connect the new one is okay.
FAQ:
Q: What is the brand name of this defensive barrier product?
A: The brand name of this defensive barrier product is SHUXIN.
Q: What is the model number of this defensive barrier product?
A: The model number of this defensive barrier product is No.1.
Q: Where is this defensive barrier product manufactured?
A: This defensive barrier product is manufactured in China.
Q: What are the dimensions of this defensive barrier product?
A: The dimensions of this defensive barrier product can be customized
